Allworx^® Connect^™

The VoIP Communication Platform for the Future

More powerful. More Advanced. Allworx Connect, our third-generation family of VoIP communication systems, has good looks and serious specs in one compact package.

Used at More Than 52,000 Business Locations

Highlights

Economical and scalable models.

Solid state storage subsystem.

Faster processing power.

Wall- and rack-mountable.

Models with or without analog FXO ports.

Gigabit Ethernet interfaces with VLANs.

G.711u, G.711a, and G729A codecs.

SIP video support.

Bank-grade HTTPS encryption for access.

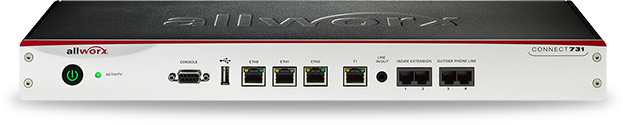

Allworx Connect 731

For up to 250 users
60 concurrent external calls
Two FXO ports
Two FXS ports
Three network ports
One T1 port

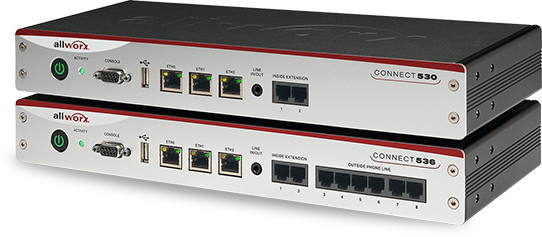

Allworx Connect 536 and 530

For up to 60 users
30 concurrent external calls
With or without six FXO ports
Two FXS ports
Three network ports

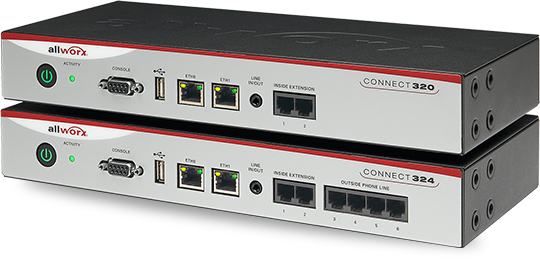

Allworx Connect 324 and 320

For up to 20 users
12 concurrent external calls
With or without four FXO ports
Two FXS ports
Two network ports

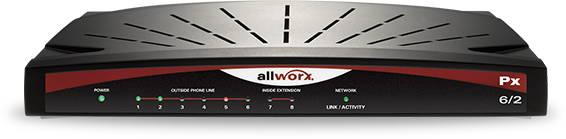

Allworx Px 6/2 Expander

Six FXO and two FXS ports
Up to three units can be added to a Connect 731, 536, and 530
One unit can be added to a Connect 324 and 320

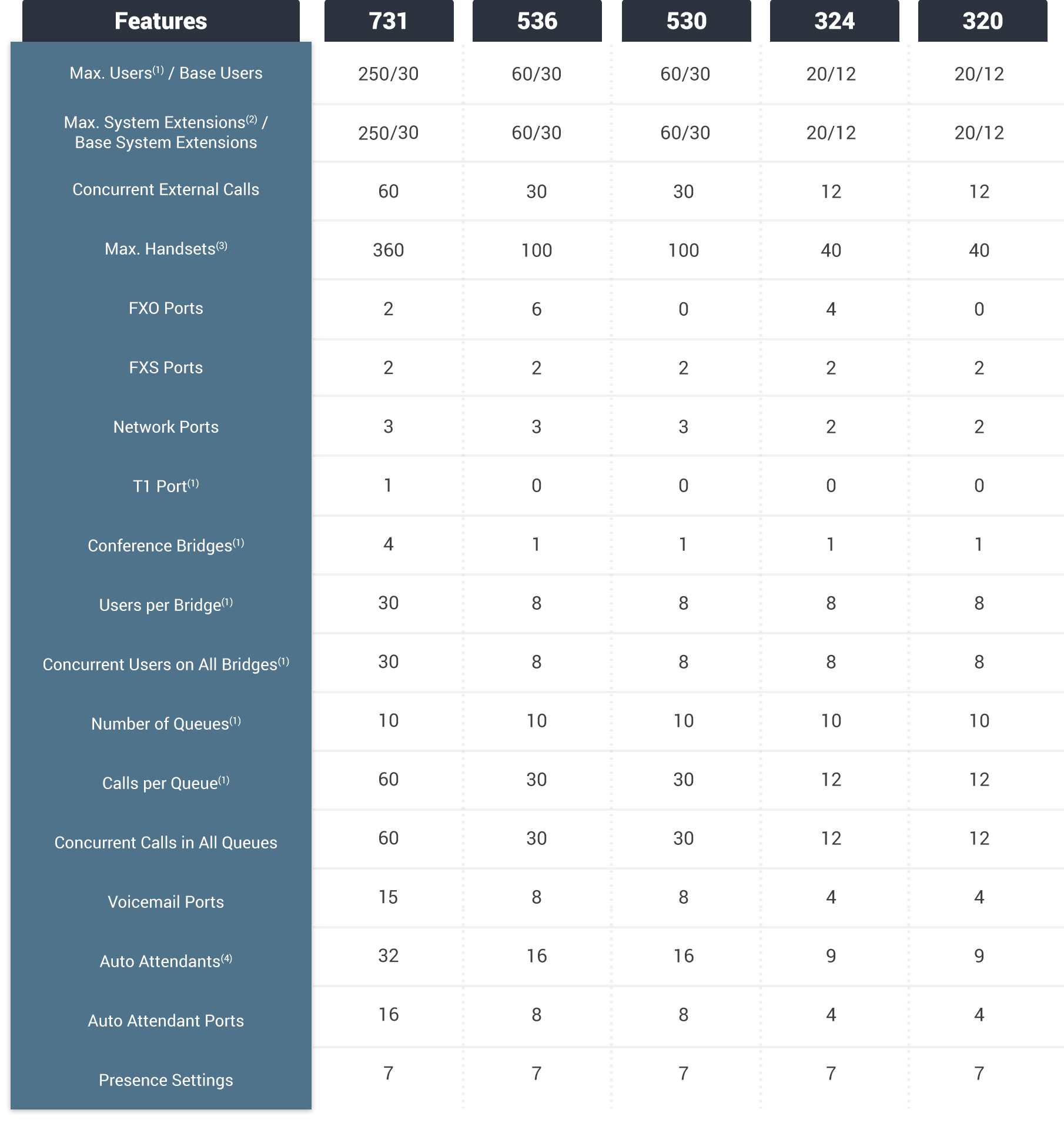

Which Allworx Connect Model is Right for You?

Show All Features

Requires an additional advanced software license key(s).
A system extension does not have an individual voicemail box (e.g., break room, customer service queue). The maximum number of system extensions is equal to the maximum number of user licenses available for a server.
Handsets include Allworx IP phones, activated Allworx Reach licenses, generic SIP devices, and analog devices.
Requires Allworx System Software 8.1 or higher.

Trade-Up and Trade-In Program

It’s easy to grow your business with Allworx Connect.

Not sure how many employees you’ll be adding in the future? You can always trade up from one Connect system to another with ease.

Or perhaps you have an older Allworx system (6x12, 6x, 48x, or 24x) you’re looking to upgrade? Trade in for a brand-new Connect system at a price that’s easy on the wallet.
